Pasteurizer PSG70x400

Reference: 000429

Request information

Description
Technical data

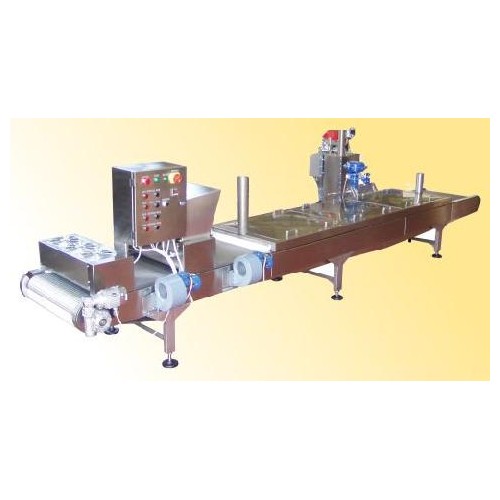

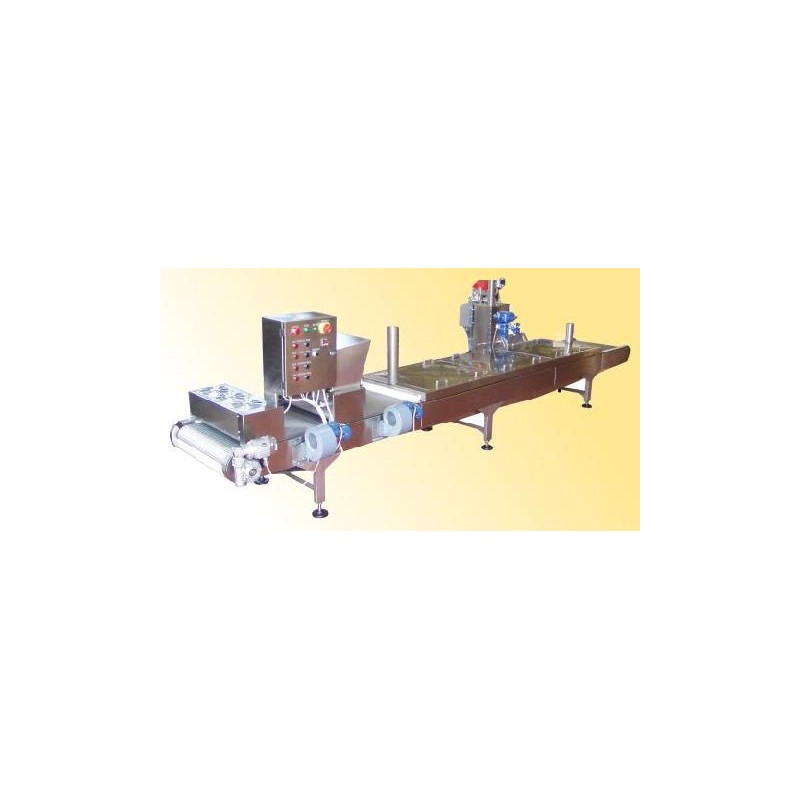

Continuous pasteurizer, powered by external steam boiler, suitable for the treatment of pasta, either filled or not, and gnocchi

Technical data

Technical and structural characteristics
Main construction and functional characteristics	Tunnel
Type of treatment	Source steam
Operating methods	Continuous
Production
Products processed	Cannelloni, Regional shapes (trofie, orecchiette, cavatelli and similar) , Gnocchi, Lasagna, Nested and coiled pasta , Short-cut pasta , Filled pasta
Production capacity	160-320 kg/h
Size and Weight
Width (mm)	1300
Length/depth (mm)	7750
Height (mm)	1200
Weight (kg)	600
Electrical data
Power supply (volt)	380
Thermal data
Operating temperature (°C)	up to 98 °C
Other
Destination	Artisanal and small-scale industry, Medium-scale industry
Price bracket	Not declared
