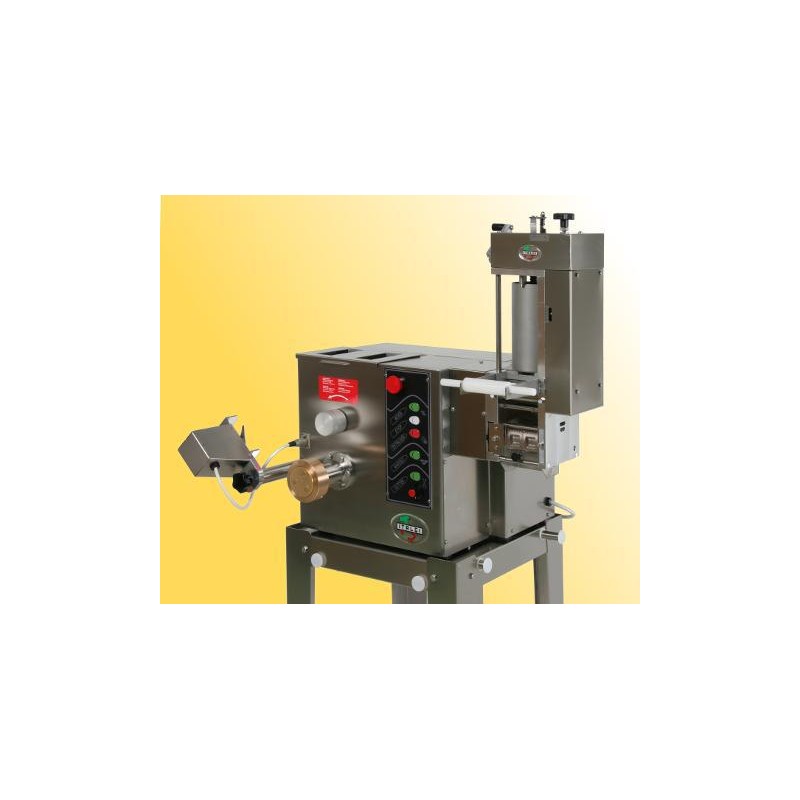

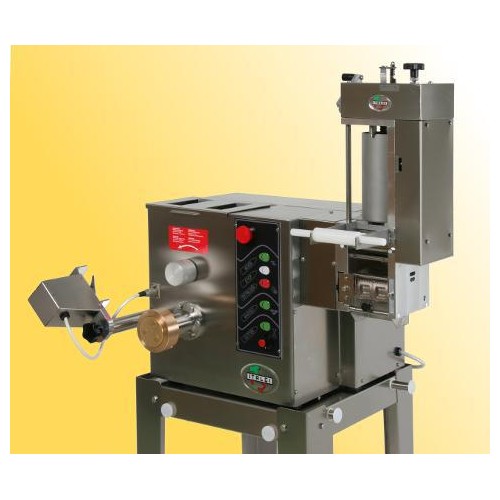

MULTIPLA combination pasta machine

000372

A complete pasta production facility in a very small footprint.

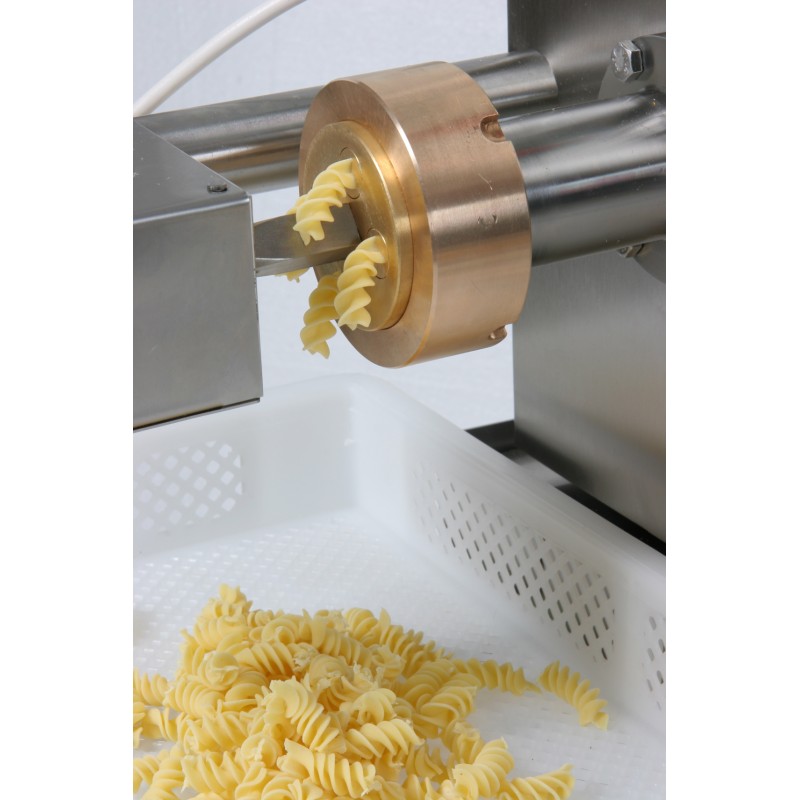

Combined machine for production of extruded pasta, sheet, ravioli and gnocchi.

Mixing hopper and body in stainless steel. Mixing arm and auger removable for easy cleaning.

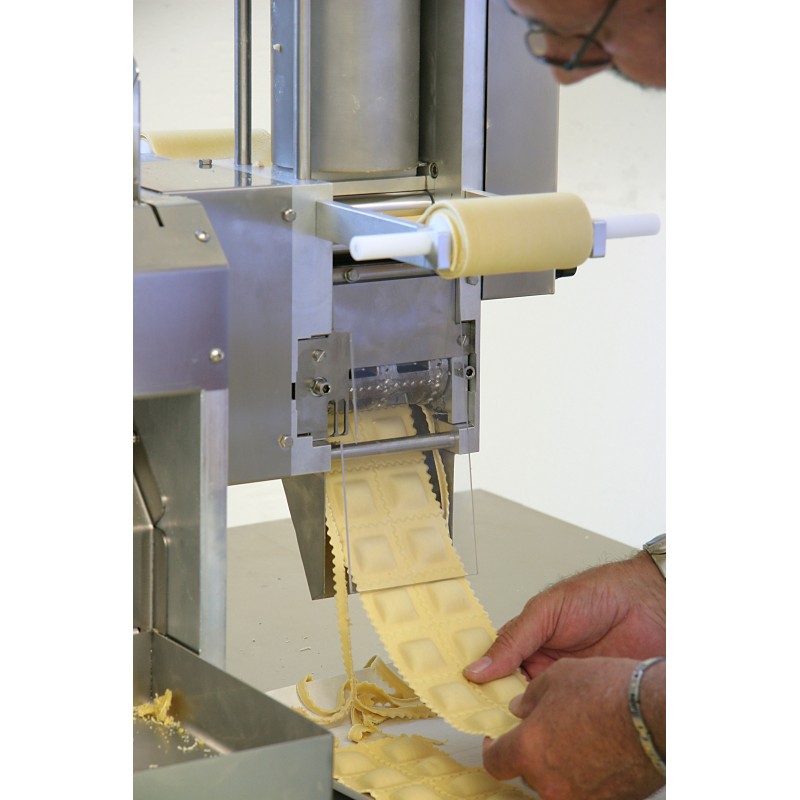

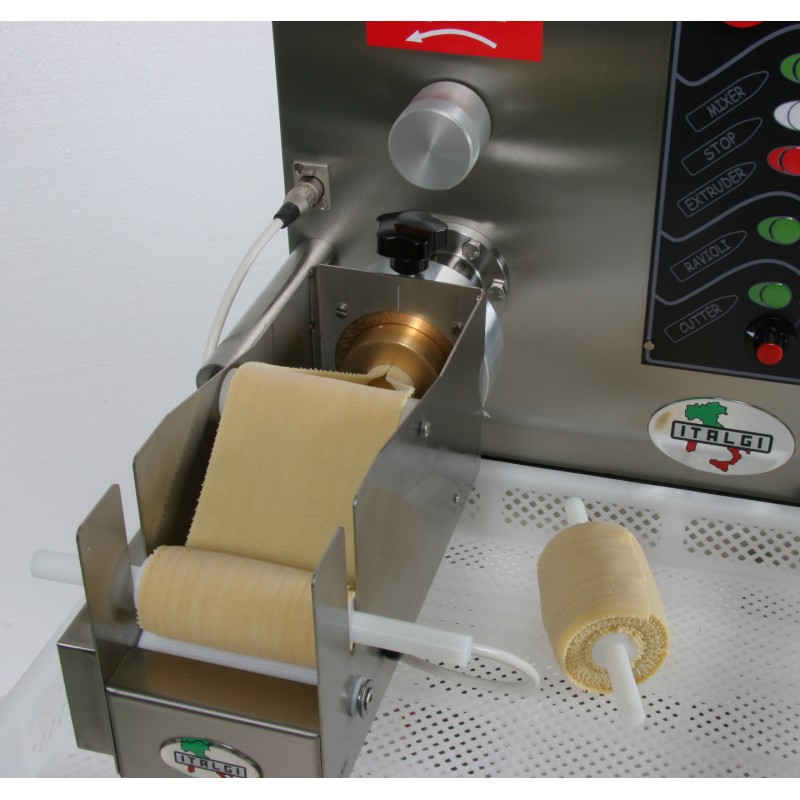

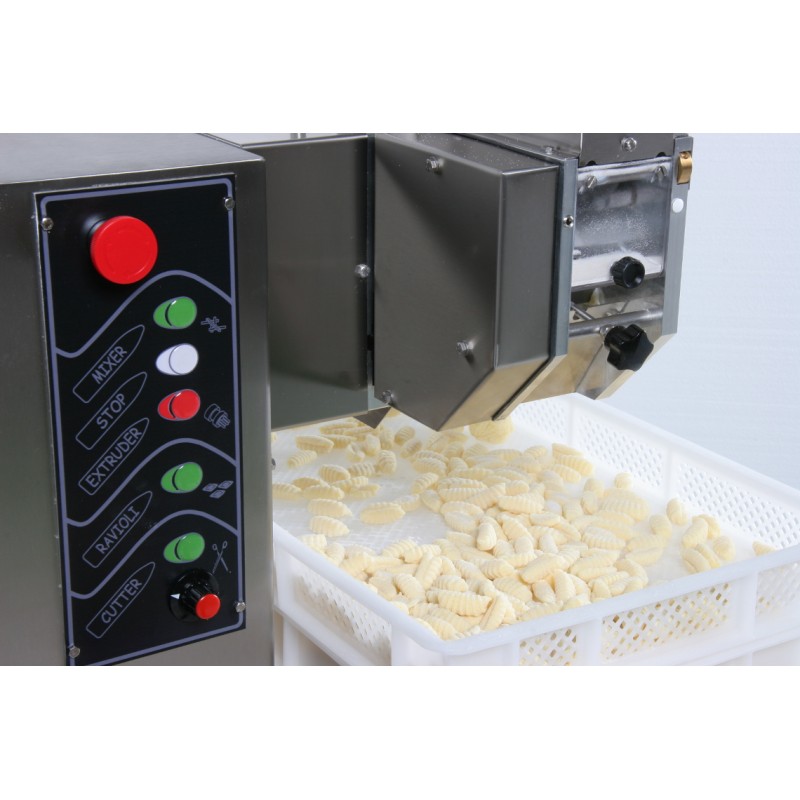

Double sheet ravioli machine with interchangeable molds. Optional accessories for automatically wrap the sheet and for the production of gnocchi.

Technical data

Technical and structural characteristics

Equipment and technical and constructive features With press, With ravioli machine machine
Operating methods discontinuous

Production

Products processed Gnocchi, Lasagna, Short-cut pasta , Filled pasta , Long-cut pasta
Production capacity Produzione in estrusione fino a 18 kg/h. Produzione ravioli fino a 25 kg/h. Produzione gnocchi fino a 20 kg/h

Size and Weight

Width (mm) 780
Length/depth (mm) 800
Height (mm) 800
Weight (kg) 102

Electrical data

Power (kW) 1.2
Power supply (volt) 220/380

Puff pastry

Pasta sheet width (mm) 100

Other

Destination Artisanal and small-scale industry
Price bracket Not declared
