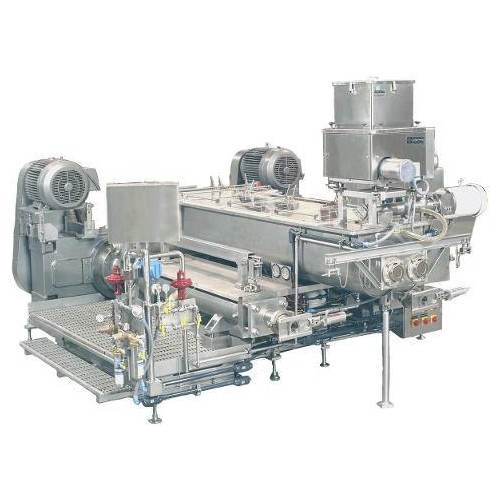

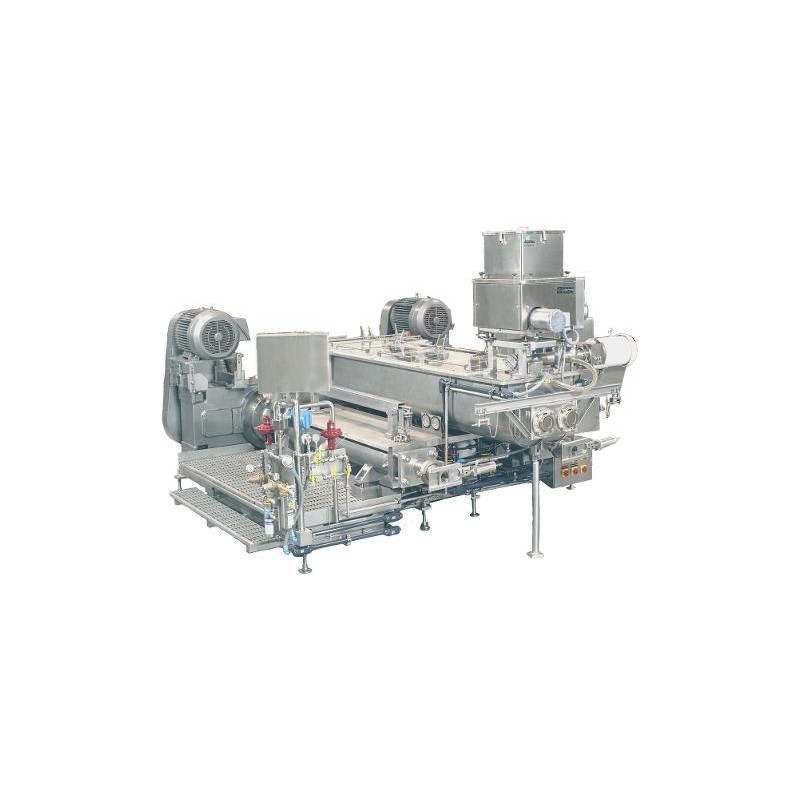

Extruder FP-0700 Pasta Press
000301
DEMACO extruder for making 700 pounds (320 kg) / hour of fresh pasta or 550 pounds (250 kg) of dry pasta. This pasta press can make a variety of long or short product shapes depending on the die. It is all stainless steel construction and is listed in the USDA Food Safety and Inspection Service Directive 11220.1 "Accepted Meat and Poultry Equipment".
Technical data
Technical and structural characteristics |
|
| Vacuum | With vacuum |
| Operating methods | Continuous |
Production |
|
| Products processed | Lasagna, Short-cut pasta |
| Production capacity | 7,400 pounds (3,360 kg) / hour of fresh pasta or 6,000 pounds (2,720 kg) of dry pasta |
Size and Weight |
|
| Width (mm) | Built to customer specification |
| Length/depth (mm) | Built to customer specification |
| Height (mm) | Built to customer specification |
| Weight (kg) | Built to customer specification |
Electrical data |
|
| Power (kW) | Built to customer specification |
| Power supply (volt) | Built to customer specification |
Puff pastry |
|
| Pasta sheet width (mm) | Built to customer specification |
Trafile |
|
| Diameter of die (mm) | 520 |
Mixing tub |
|
| Capacity (l or kg) | 3360 kg |
Other |
|
| Destination | Large-scale industry |
| Price bracket | 500.000-1.000.000 |
