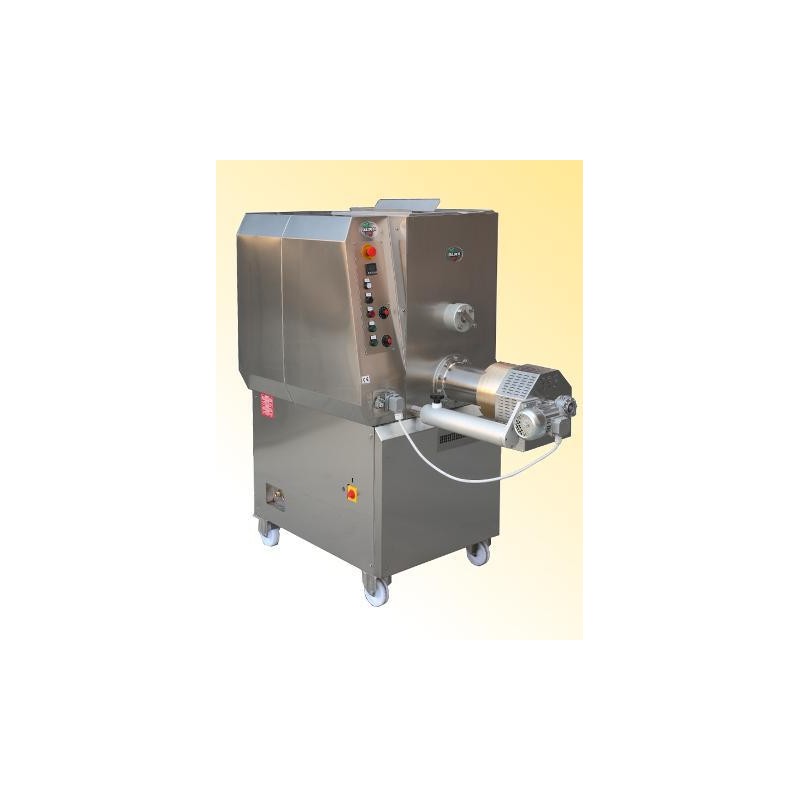

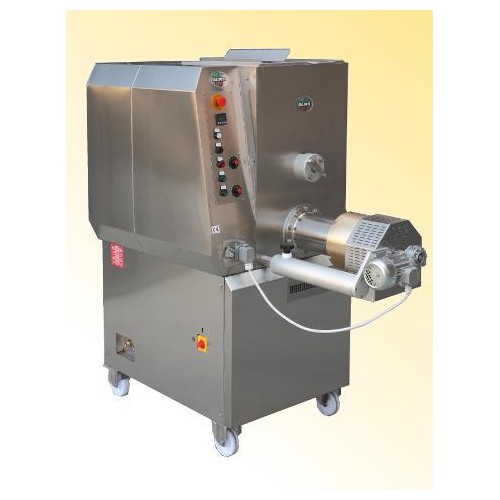

Extruder P100A
000036
Extruder with water-cooled extruding head with closed circuit and automatic knife for short pasta. Frame, tank and stainless steel body mad of AISI 304 stainless steel. Auger and mixer easily removable for easy cleaning.
The press can be added to a mixing tank for continuous production lines.
With a special die it is possible to produce stuffed cannelloni.
Technical data
Technical and structural characteristics |
|
| Equipment and technical and constructive features | Bench top |
| Operating methods | discontinuous |
Production |
|
| Products processed | Cannelloni, Short-cut pasta , Long-cut pasta |
| Production capacity | Pasta production in extrusion 170 kg/h |
Size and Weight |
|
| Width (mm) | 850 |
| Length/depth (mm) | 1700 |
| Height (mm) | 1850 |
| Weight (kg) | 330 |
Electrical data |
|
| Power (kW) | 10 |
| Power supply (volt) | 400 triphase |
Trafile |
|
| Diameter of die (mm) | 198 |
Mixing tub |
|
| Capacity (l or kg) | 70 |
Other |
|
| Destination | Medium-scale industry |
| Price bracket | Not declared |
