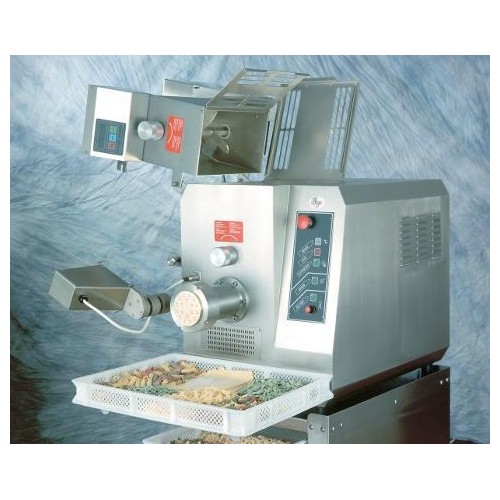

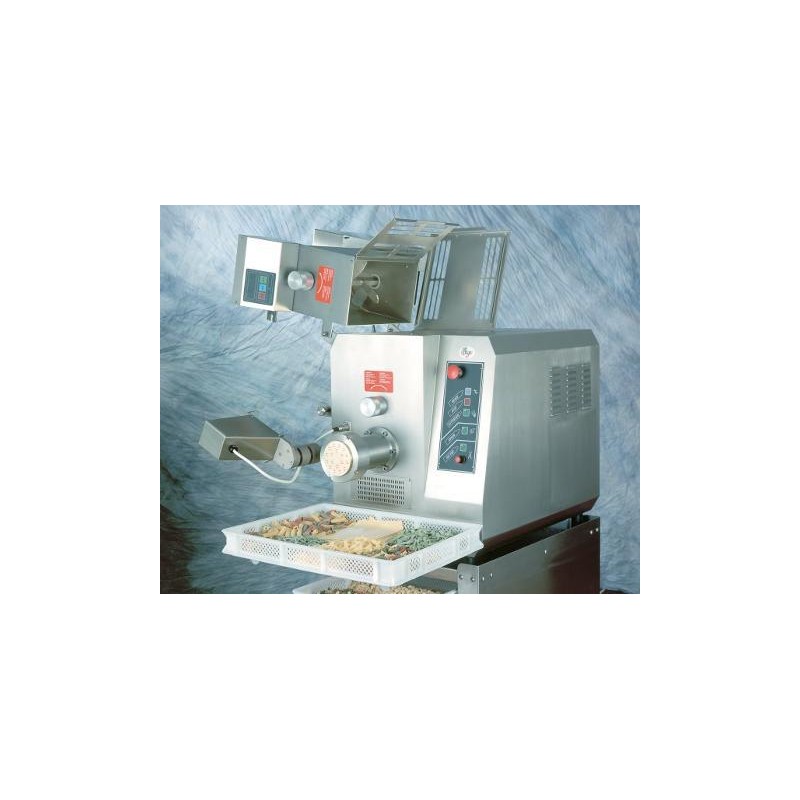

Extruder P55DV

Reference: 000038

Request information

Description
Technical data

Extruder with water-cooled extruding head with closed circuit and automatic knife for short pasta. Frame, tank and stainless steel body mad of AISI 304 stainless steel.

Auger and mixer easily removable for easy cleaning.

The machine is provided with a folding auxiliary mixer for continuous production.
With a special die it is possible to produce stuffed cannelloni.

Technical data

Technical and structural characteristics
Operating methods	Continuous
Production
Products processed	Cannelloni, Short-cut pasta , Long-cut pasta
Production capacity	Pasta production in extrusion 50 kg/h
Size and Weight
Width (mm)	860
Length/depth (mm)	1100
Height (mm)	1680
Weight (kg)	180
Electrical data
Power (kW)	2
Power supply (volt)	400 triphase
Trafile
Diameter of die (mm)	109
Mixing tub
Capacity (l or kg)	10 + 8
Other
Destination	Artisanal and small-scale industry
Price bracket	Not declared
