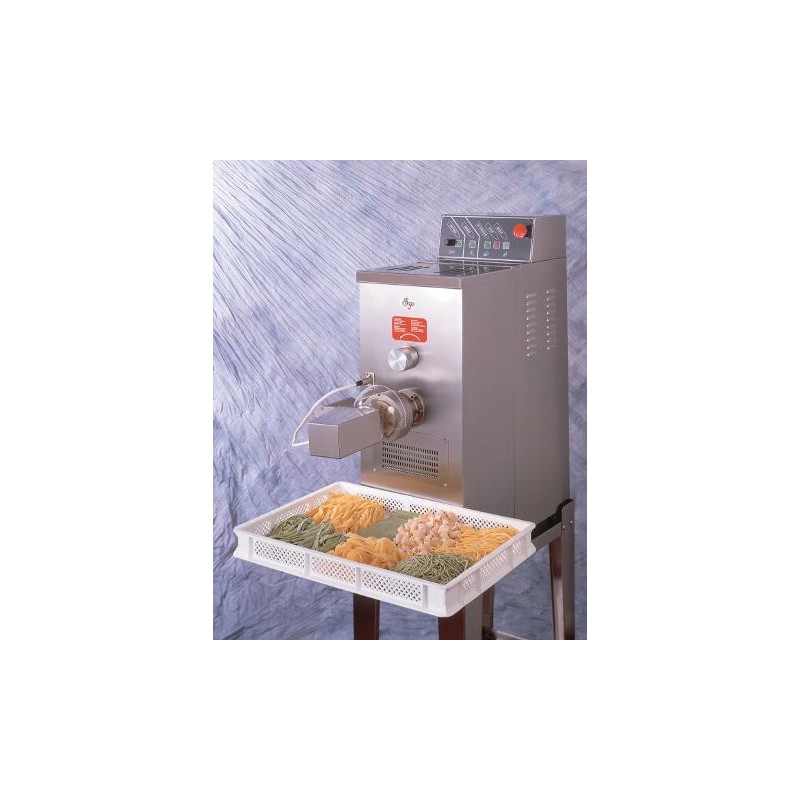

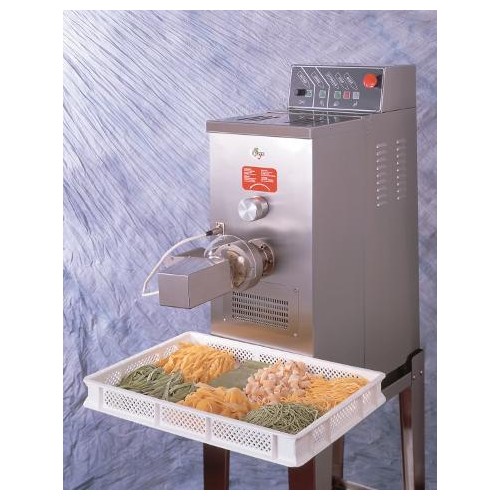

Extruder P17

000064

Extruder with automatic knife for short pasta. Fram, tank and body in stainless steel. Auger and mixer easily removable for easy cleaning.

Water-cooled extruding head available on request.

Technical data

Technical and structural characteristics

Vacuum Without vacuum
Operating methods discontinuous

Production

Products processed Short-cut pasta , Long-cut pasta
Production capacity Production in extrusion 25 kg/h

Size and Weight

Width (mm) 360
Length/depth (mm) 980
Height (mm) 1440
Weight (kg) 120

Electrical data

Power (kW) 0.8
Power supply (volt) 220 single phase or 400 triphase

Trafile

Diameter of die (mm) 94

Mixing tub

Capacity (l or kg) 7

Other

Destination Artisanal and small-scale industry
Price bracket Not declared
