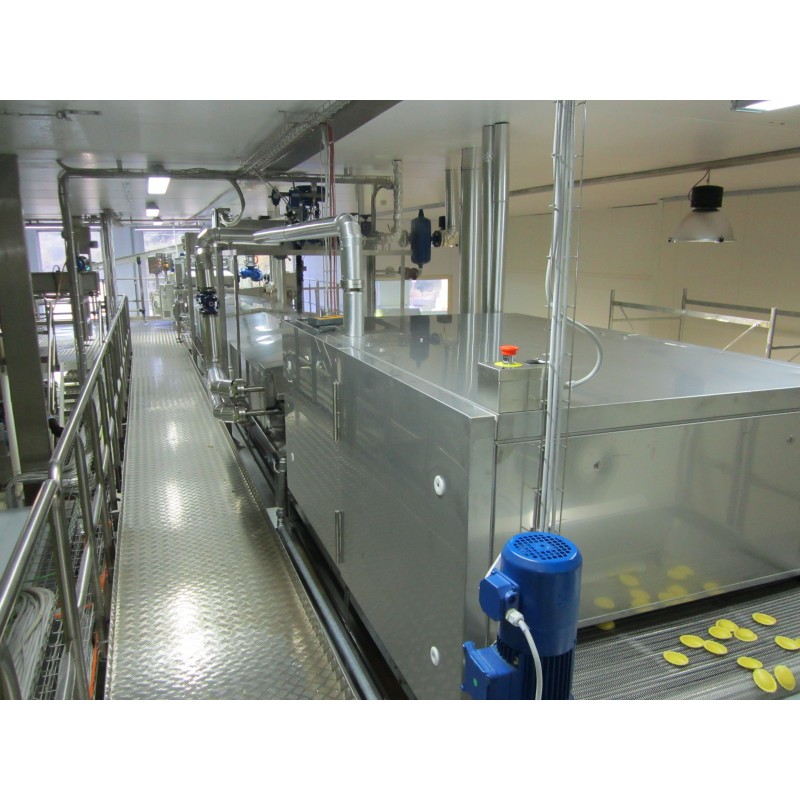

Pasteurizer

000519

Steam or gas pasteurizer allows the heat treatment of the product to reduce bacterial level and shelf life of the product.

Gas pasteurizer has an energy saving of 60% than traditional pasteurizer.

The bearing structure and the belt is in stainless steel, driven by lateral chains.

The insulating cover panel is made in a single piece, in stainless steel, in convex form, equipped with high-efficiency internal insulation, sealed with continuous weld between the panels. Removable PATENTED system to keep condensation at the exit of the pasteurization chamber and water seal for steam, made with a closure system between the upper cover and the underlying tank.

It’s possible to have a drying area with panels in stainless steel with possibility of manual opening for cleaning, nr. 2 helicoidal fans with speed variation for air quantity. Steam or electric battery with finned tubes (max. temperature 80°C).

Technical data

Technical and structural characteristics

Main construction and functional characteristics Tunnel
Type of treatment Injected steam
Operating methods Continuous

Production

Products processed Gnocchi, Lasagna, Nested and coiled pasta , Short-cut pasta , Long-cut pasta , Filled pasta

Other

Destination Medium-scale industry
Price bracket Not declared
