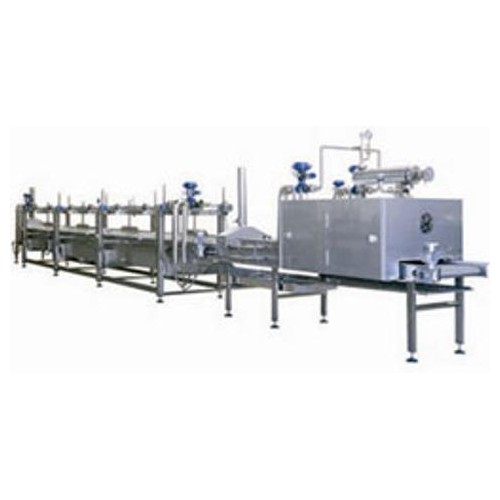

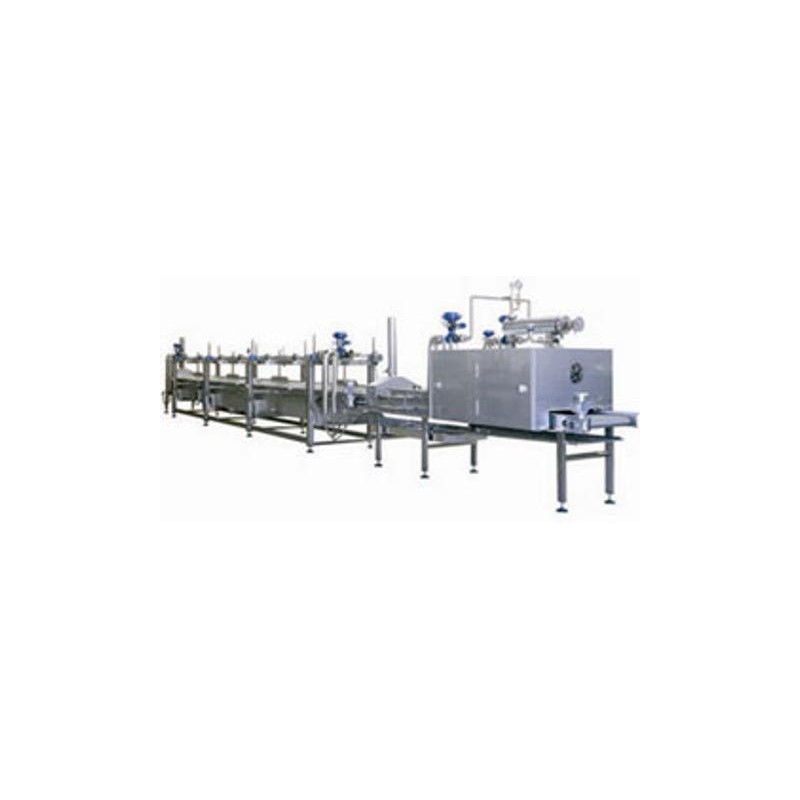

STEAM PASTEURIZER

000116

To pasteurize with saturated or superheated steam.

Tunnel in stainless steel with lifting cover panel for easy access during the cleaning operations,
composed of three sections: pre-heating, treatment and final radiation.
The treatment parameters can be changed during the working cycle.

Features:

  • Conveyor belt in AISI 304 stainless steel net with articulated meshes, side chains
  • Insulating cover panel
  • Steam distribution system with product pre-heating/treating/final radiation zones
  • Moisture extraction hoods with stainless steel fan.

Technical data

Technical and structural characteristics

Main construction and functional characteristics Tunnel
Equipment and technical and constructive features Control PLC, Touch screen panel
Type of treatment Injected steam
Operating methods Continuous

Production

Products processed Regional shapes (trofie, orecchiette, cavatelli and similar) , Gnocchi, Short-cut pasta , Filled pasta , Long-cut pasta
Production capacity 60-1500 kg/h

Size and Weight

Width (mm) 750-2000
Length/depth (mm) 3500-20000
Height (mm) 1800-2600

Electrical data

Power (kW) 2-6
Power supply (volt) 400

Thermal data

Operating temperature (°C) 92-96
Operating pressure (bar) 3-5

Other

Destination Large-scale industry, Medium-scale industry
Price bracket Not declared
