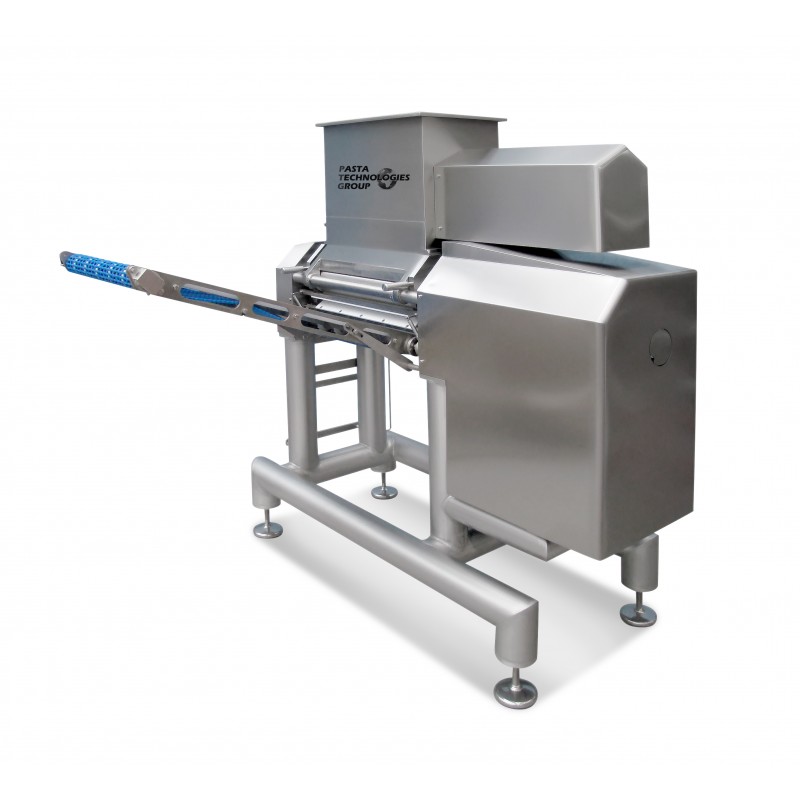

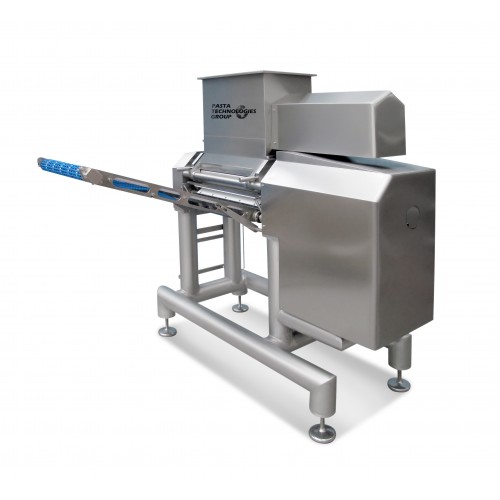

Sheeter mod. SA540


The automatic sheeter type SA is projected and designed to knead the dough prepared by a continuous mixer and to produce a fresh laminated pasta sheet with a 7-8 mm thickness. Provided with belt and loop control, it becomes a complete fresh pasta forming group for automatic and continuous lines, where the operator is a supervisor of the process. Available in the coupled version, suitable to feed a double sheet forming machine.

Technical data

Technical and structural characteristics

Equipment and technical and constructive features Single tank
Operating methods Continuous


Products processed Cannelloni, Lasagna, Nested and coiled pasta , Filled pasta , Long-cut pasta
Production capacity 490 kg/h

Size and Weight

Width (mm) 1340
Length/depth (mm) 670
Height (mm) 1720
Weight (kg) 1100

Electrical data

Power (kW) 3
Power supply (volt) 380 Volt, 50 Hz

Puff pastry

Pasta sheet width (mm) 540
Pasta sheet thickness (mm) 7-8

Mixing tub

Capacity (l or kg) 50 kg approx.


Destination Large-scale industry, Medium-scale industry
Price bracket Not declared
