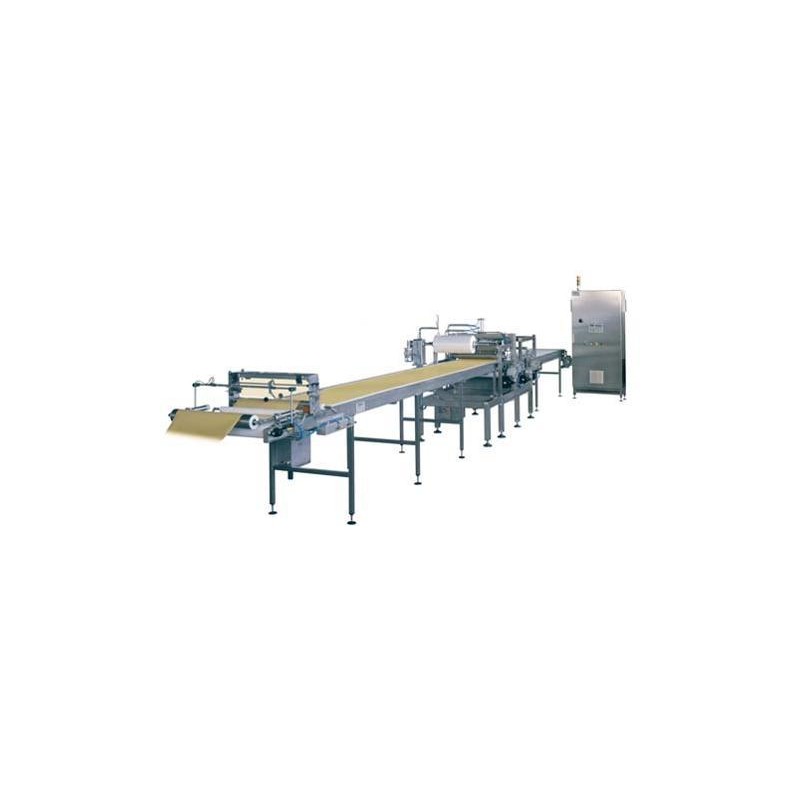

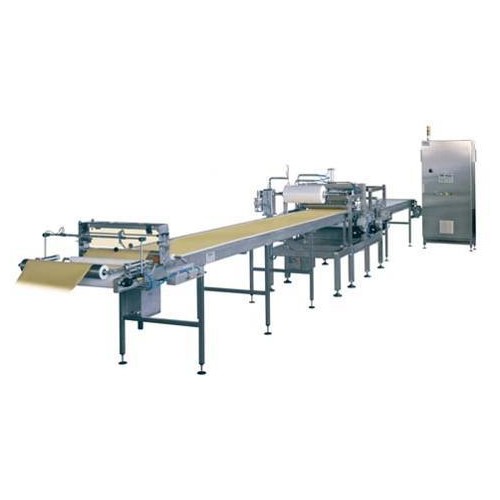

LINE FOR LASAGNE SHEETS INTERPOSED WITH POLYETHYLENE SHEETS

000121

To join protective film sheets to precooked, washed and cooled pasta sheets,
in order to keep them separated, and to pile them up in predetermined numbers.
The process is fully automatic, in the end the operator can easily manage the packs of sheets
- a product widely used in cookery.

Machines:

  • Automatic mixer
  • Sheeting machine
  • Calibrator
  • Continuous cooker with product washing and cooling area
  • Equipment for cutting the pasta, adding the film, forming the packs of lasagne sheets

Technical data

Technical and structural characteristics

Operating methods Automatic

Production

Products processed Lasagna
Main characteristics of the product Fresh, Precooked, Frozen
Production capacity 80-400 kg/h

Size and Weight

Width (mm) 2000
Height (mm) 4500

Electrical data

Power supply (volt) 400

Thermal data

Operating pressure (bar) 4

Other

Destination Artisanal and small-scale industry, Large-scale industry, Medium-scale industry
Price bracket Not declared
