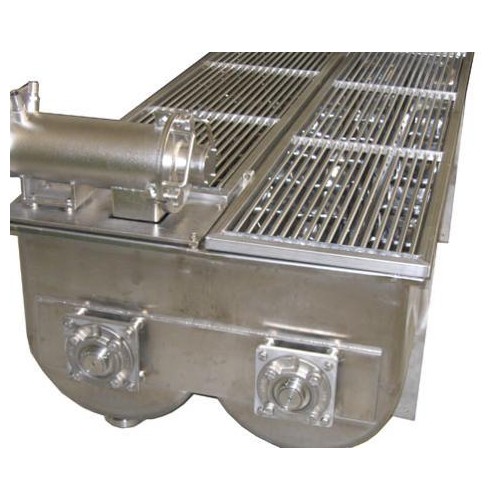

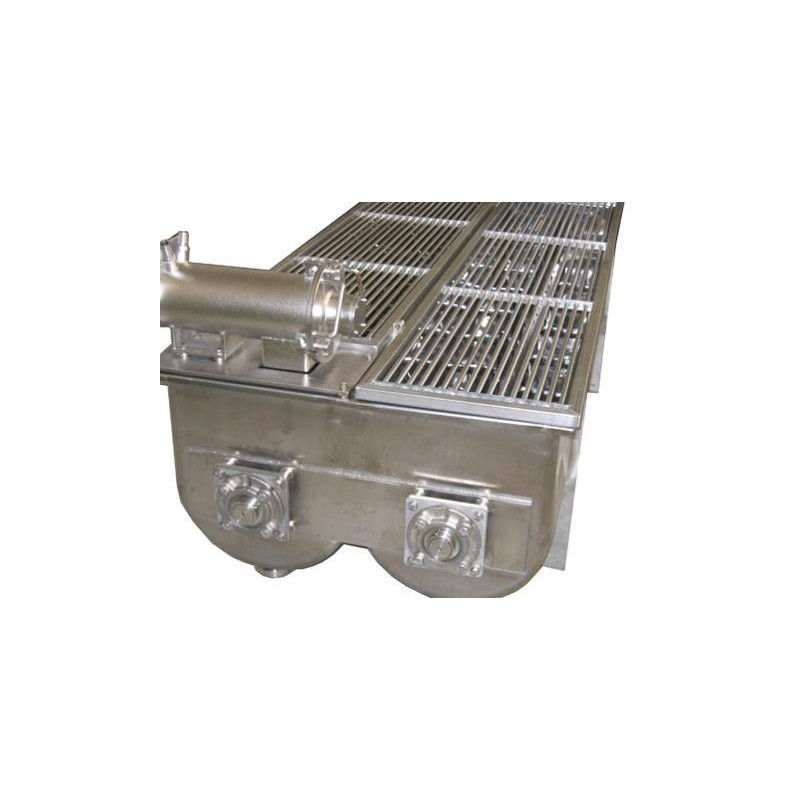

To complete the hydration of the dough received from the premix. Mixing tank entirely in stainless steel, dimensioned to ensure the required mixing time. The supporting structure – complete with columns, walking terrace with railing and access stairs – makes the machine solid and extremely versatile.


  • Single or double tank, built in ASI 304 stainless steel, with transparent cover
  • Internal parts of the tank rounded for easy cleaning
  • Stainless steel platform with anti-slip corrugated aluminum base
  • Distribution of the dough to the sheeting machines by means of a shuttle system
  • Electric panel with PLC

Technical data

Technical and structural characteristics

Equipment and technical and constructive features Double tank, Single tank, With flour dosing system, With liquids dosing system
Operating methods Continuous


Products processed Cannelloni, Regional shapes (trofie, orecchiette, cavatelli and similar) , Lasagna, Nested and coiled pasta , Short-cut pasta , Filled pasta , Long-cut pasta
Production capacity 300-1800 kg/h

Size and Weight

Width (mm) 500-1000
Length/depth (mm) 2000-2500
Weight (kg) 1500-2000

Electrical data

Power (kW) 4-9
Power supply (volt) 400


Destination Artisanal and small-scale industry, Large-scale industry, Medium-scale industry
Price bracket Not declared
