To reduce the moisture of the product with hot air circulation through a heating battery.

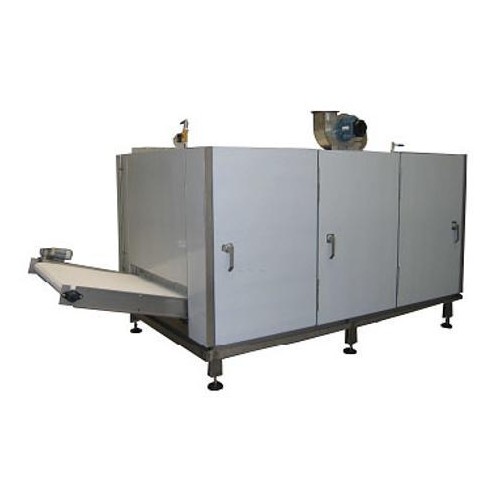

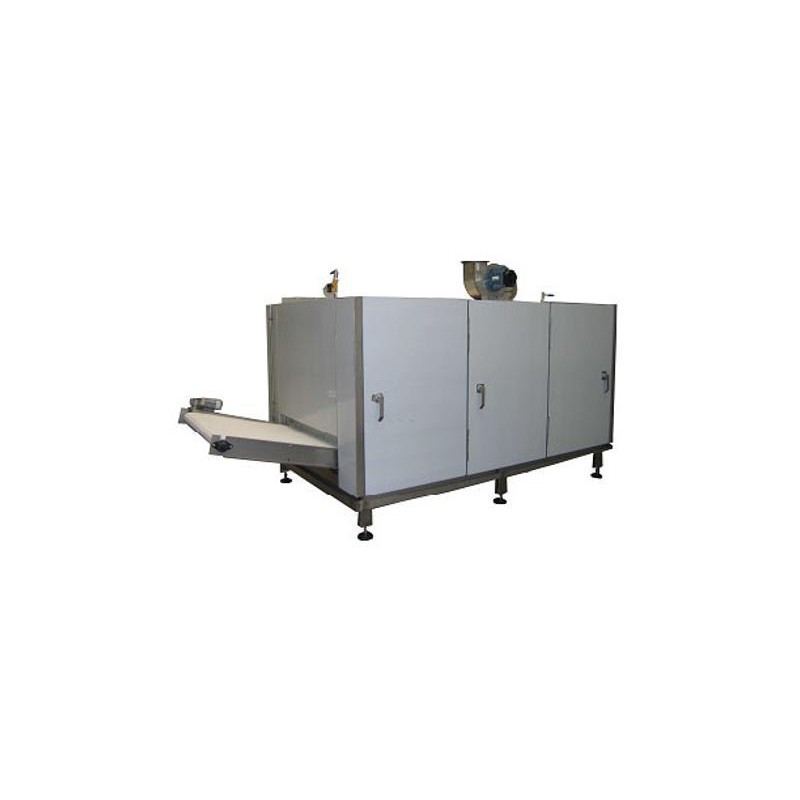

The drying tunnel is in stainless steel, with insulation panels that can be opened for cleaning.

Temperature and humidity are controlled by a probe, excess moisture is expelled by an aspirator.

The treatment parameters (temperature, time and humidity) can be varied during operation, ensuring flexibility.


  •  Structure in AISI 304 stainless steel with adjustable feet
  • Insulated panels that can be opened
  • Steam-fed battery with stainless steel tubes and fins
  • Hot air circulation through ventilators

Technical data

Technical and structural characteristics

Main construction and functional characteristics Tunnel
Operating methods Continuous


Products processed Regional shapes (trofie, orecchiette, cavatelli and similar) , Gnocchi, Short-cut pasta , Filled pasta , Long-cut pasta
Production capacity 60-1500 kg/h

Size and Weight

Width (mm) 750-2000
Length/depth (mm) 3400-6100
Height (mm) 1800-2600

Electrical data

Power (kW) 4-6
Power supply (volt) 400

Thermal data

Operating temperature (°C) 60-80
Operating pressure (bar) 3-5


Destination Artisanal and small-scale industry, Large-scale industry, Medium-scale industry
Price bracket Not declared
