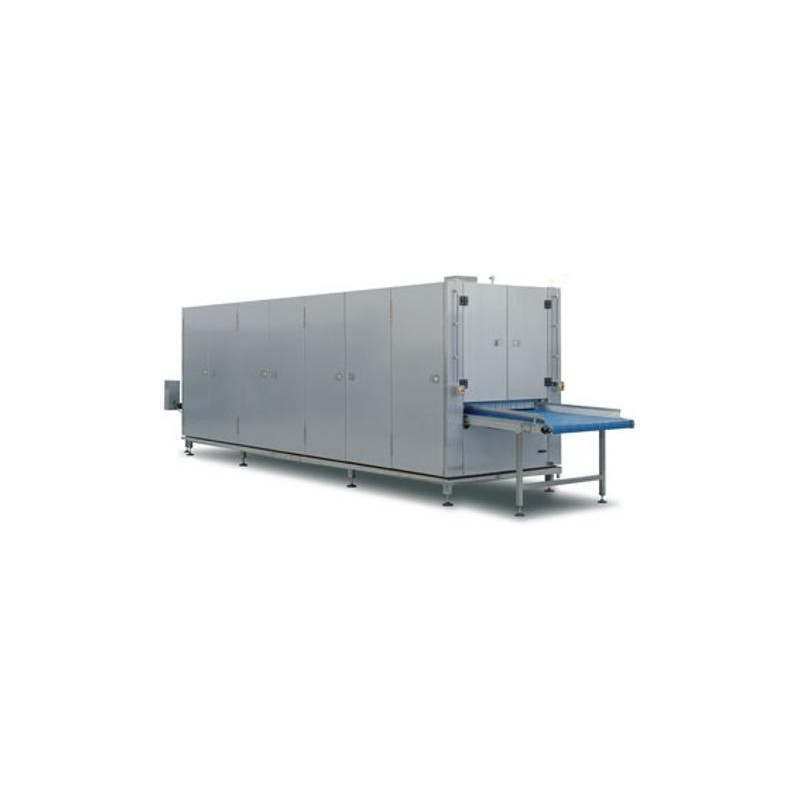

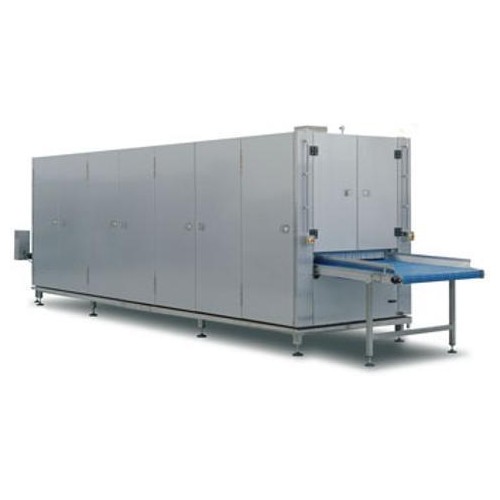

To quickly reduce the temperature of the product with cold air circulation through a cooling coil.

The cooling tunnel is in stainless steel, with insulation panels that can be opened for cleaning.

The treatment parameters (temperature and time) may be varied during operation, ensuring flexibility.


  • Structure in AISI 304 stainless steel with adjustable feet
  • Insulated panels that can be opened
  • Washable coils in stainless steel, fed by Freon gas or glycol, washable
  • Cold air circulation through ventilators

Technical data

Technical and structural characteristics

Main construction and functional characteristics Tunnel
Equipment and technical and constructive features Control PLC, Touch screen panel
Operating methods Continuous


Products processed Regional shapes (trofie, orecchiette, cavatelli and similar) , Gnocchi, Short-cut pasta , Filled pasta , Long-cut pasta
Production capacity 200-800 kg/h

Size and Weight

Width (mm) 750-2000
Length/depth (mm) 5000-9000
Height (mm) 1800-2600

Electrical data

Power (kW) 2-4.5
Power supply (volt) 400

Thermal data

Operating temperature (°C) -2/0


Destination Artisanal and small-scale industry, Large-scale industry, Medium-scale industry
Price bracket Not declared
