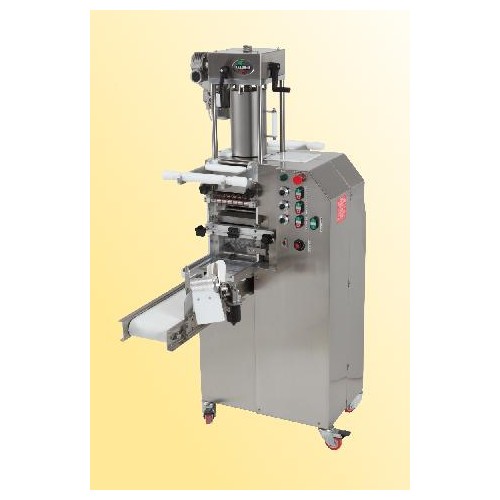

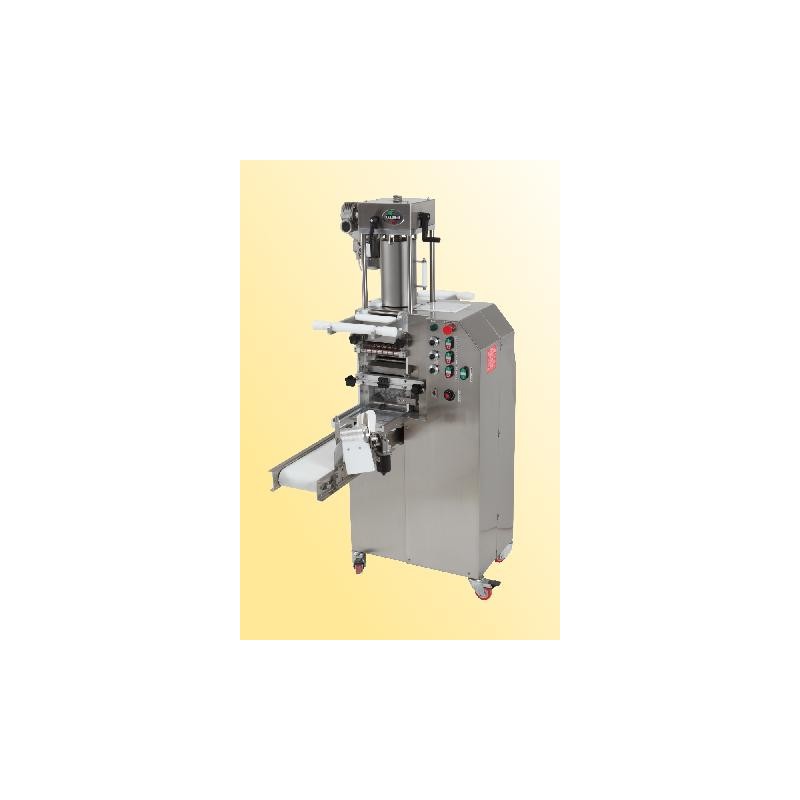

Ravioli machines PRC

000062

Double sheet ravioli specific for those who need to produce ravioli with variable thicknesses of dough and very soft fillings.
Available in two sheet widths: 160 mm, and 250 mm, and equipped with a piston pump for the filling with big filling container.
The machine can produce many different shapes of ravioli by simply changing the mold; changing the mold is an easy and fast operation because the molds are very compact and have only two rollers of 95 mm diameter with mechanical extractors of the product; the rotation of the mold is obtained by means of a dedicated motor controlled by an electronic inverter.
The control panel provides many settings that allow to work with different formats and sizes, a wide range of sheet thicknesses and very soft fillings.
Large laminating rollers (Ø66 mm) in stainless steel driven by dedicated motor; lamination speed controlled by electronic inverter.
The filling system piston is driven by a dedicated motor controlled by a further inverter.
The three inverters allow a much more complete than traditional machines, even using molds of different shape and size , different quantity and consistency of fillings, or various thicknesses of sheet (from very thin to very thick).
An innovative patented system allows pre-forming the sheet to ensure an optimum filling also in the case of very soft fillings.
The machines are designed and optimized to obtain a high yield. The many controls available allow to maximize production for each mold used ..
All parts in contact with the product are made of stainless steel or food-grade polyethylene.
The components which need to be frequently cleaned can be easily removed to wash them. The innovative molds with only two rollers allow a much more accurate cleaning than the traditional molds with four rollers, the interior of which is not easily accessible.
PRC series machines have been designed according to the latest European safety standards and dimensioned to ensure reliability and durability.
The structure of the machine is extremely robust; all rotating elements are housed on ball bearings, not on bushes.
The mechanics is separated from the sides of the machine to prevent possible infiltration of pasta in the mechanical components.
The chassis and body are made of AISI 304 stainless steel; the mechanical parts in contact with the product are all in food graded materials.

Technical data

Technical and structural characteristics

Equipment and technical and constructive features Double sheet
Operating methods discontinuous

Production

Products processed Filled pasta
Production capacity Ravioli up to 200 kg/h

Size and Weight

Width (mm) From 690 to 780
Length/depth (mm) 1400
Height (mm) 1850
Weight (kg) From 270 to 340

Electrical data

Power (kW) 2.5
Power supply (volt) 220

Puff pastry

Pasta sheet width (mm) 160 or 250

Other

Destination Artisanal and small-scale industry, Large-scale industry
Price bracket Not declared
