MODULA

000374

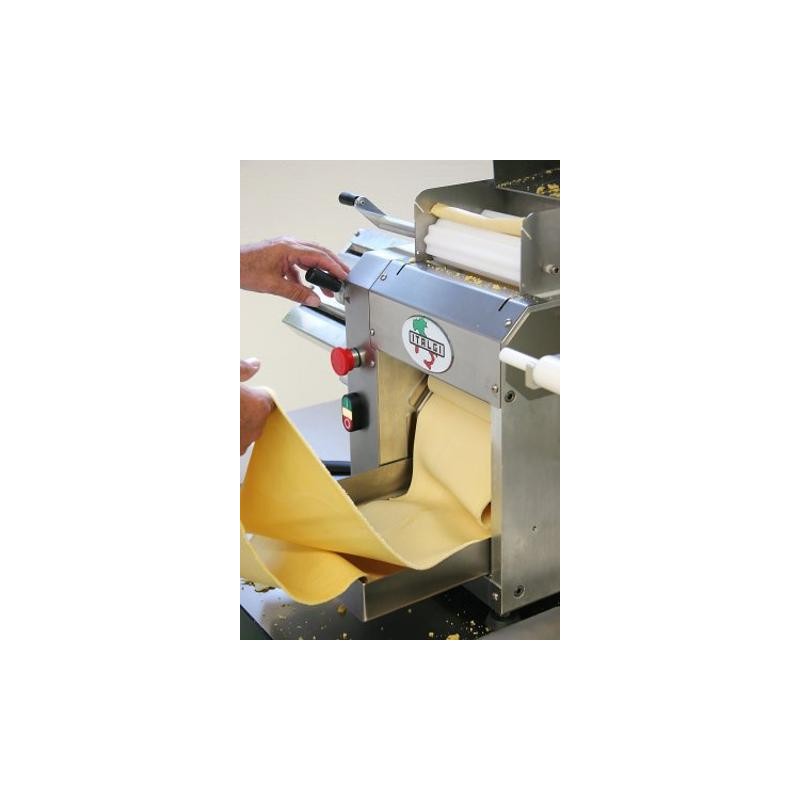

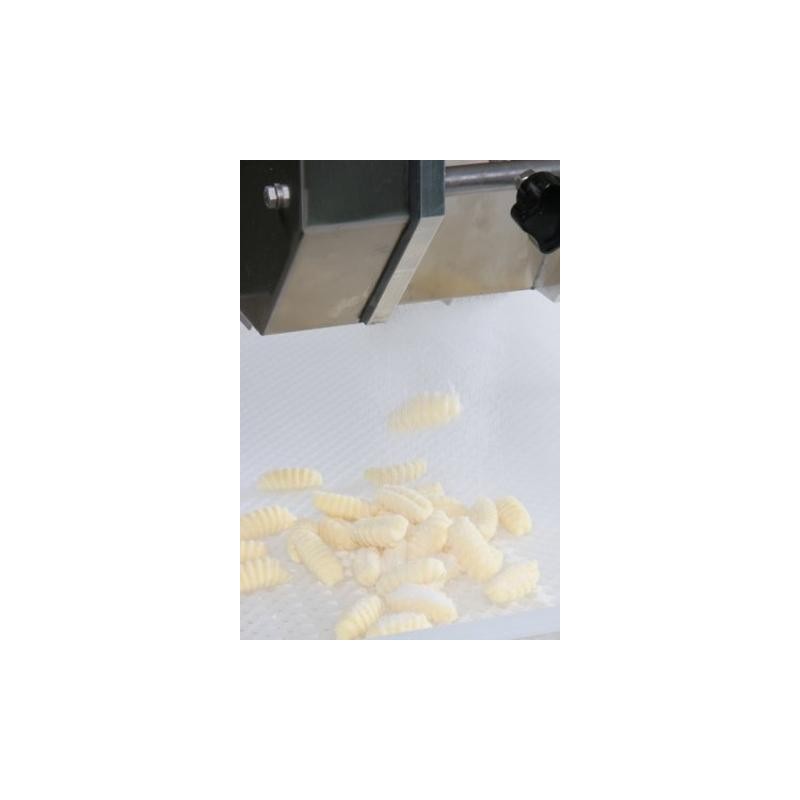

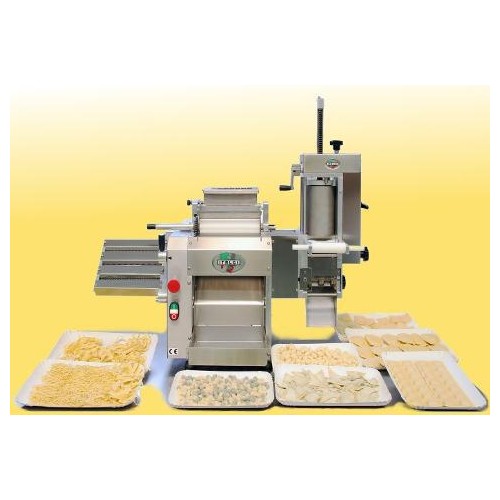

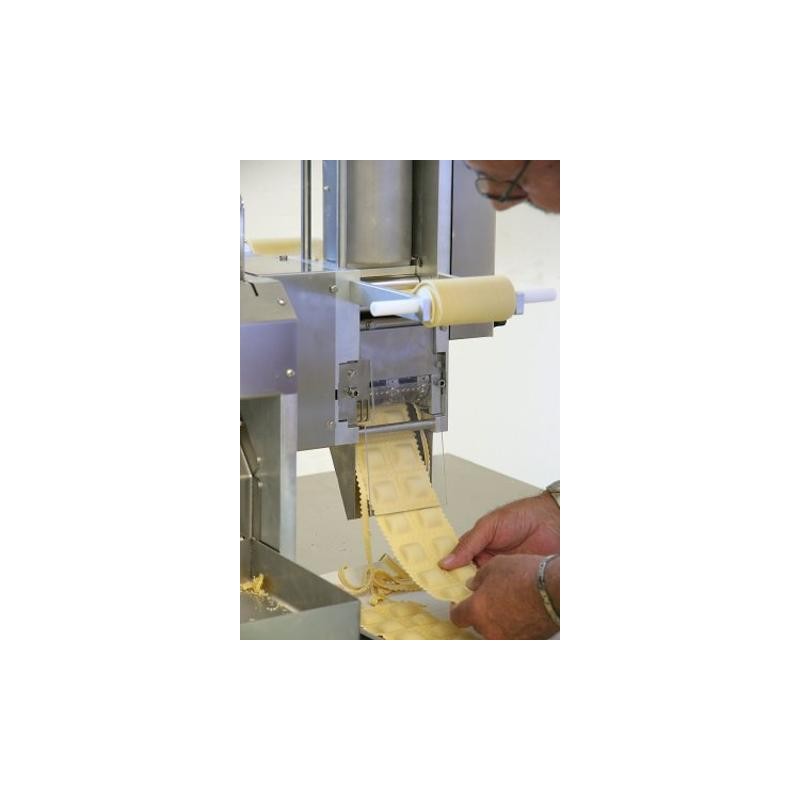

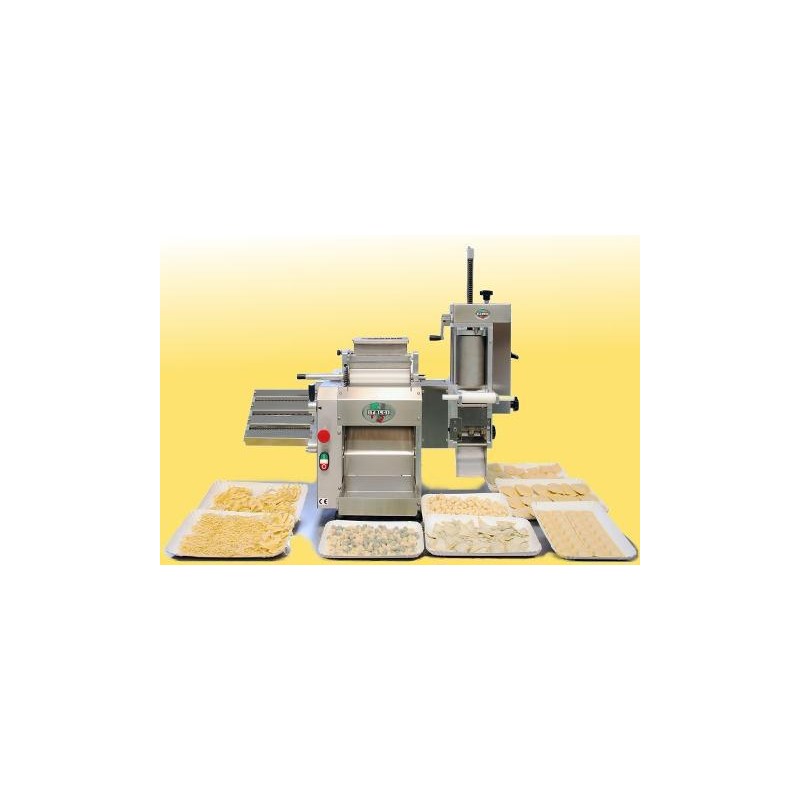

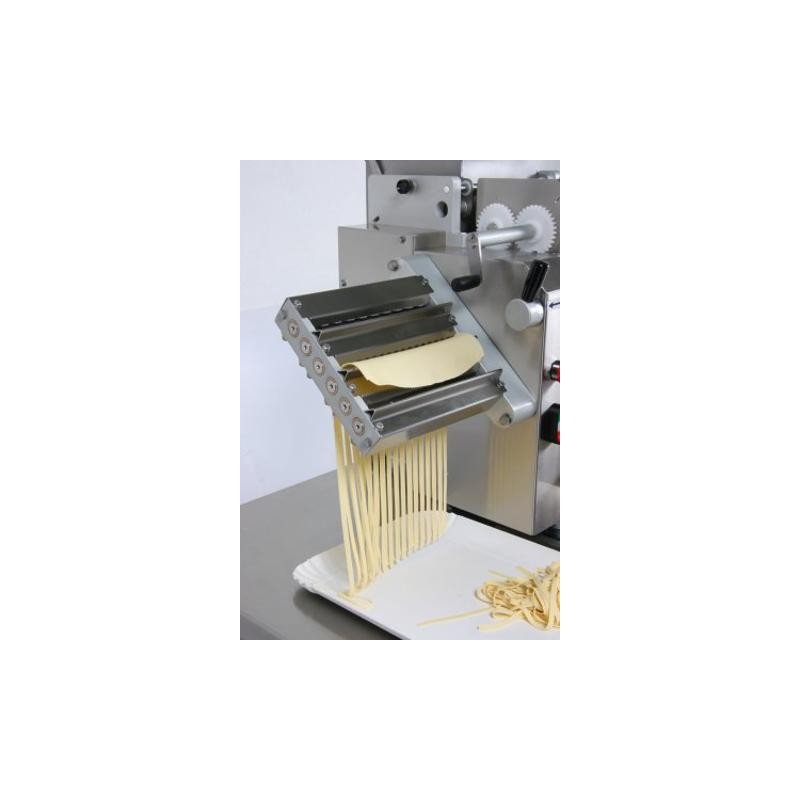

Modular combination machine for production of laminated pasta, sheet, ravioli and gnocchi. Mixing hopper and body in stainless steel. Mixing arm removable for easy cleaning. Lamination group with stainless steel rollers and patented safety system. Cutter in three sizes with stainless steel rollers. Double sheet ravioli machine with interchangeable molds. Optional accessory for the production of gnocchi. In combination with our workstation line PASTA IDEA, Modula is an excellent solution to produce ready meals based on pasta in a fast and cheap way and in very small spaces.

Technical data

Technical and structural characteristics

Equipment and technical and constructive features With dough sheeter, With sheet cutter, With ravioli machine machine
Operating methods discontinuous

Production

Products processed Lasagna, Filled pasta , Long-cut pasta
Production capacity Produzione in laminazione fino a 12 kg/h. Produzione ravioli fino a 25 kg/h. Produzione gnocchi fino a 20 kg/h

Size and Weight

Width (mm) 940
Length/depth (mm) 510
Height (mm) 750
Weight (kg) 112

Electrical data

Power (kW) 0.65
Power supply (volt) 220/380

Puff pastry

Pasta sheet width (mm) 200

Other

Destination Artisanal and small-scale industry
Price bracket Not declared
